VM03-MKII

3-SCREEN VIDEO DISPLAY

Full-tilt viewing for your video output

The Numark VM03–MKII is a 3–screen/6–input LCD video display monitor designed for any video monitoring application. The advanced design of the VM03–MKII allows the user to monitor video sources in either a rack–mount (3 rack spaces required) or tabletop setting.

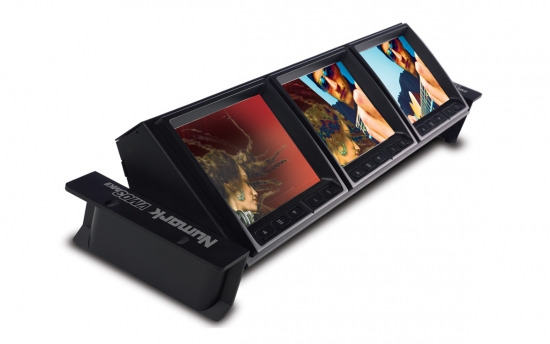

What separates the VM03–MKII from other video monitors on the market is the adjustable viewing angle. This unique design allows the video producer or engineer to customize the VM03–MKII viewing angle up to 96 degrees. This flexibility is ideal for DJ and broadcast applications, where limited space may prohibit easy viewing.

The VM03-MKII allows users to preview and view video sources on rugged, high-quality monitors that can be configured either as a rack mount (occupying three rack spaces) or as a tabletop unit.

The three 5.6-inch diagonal color TFT-LCD screens on the VM03-MKII each feature two composite video inputs and a built-in video switch to allow monitoring of up to six video sources. With its pass-through output, the VM03-MKII allows daisy-chaining to another video input device. The VM03-MKII sets a new standard for video monitoring.

All information is preliminary and subject to change.

FEATURES

  • Three 5.6” (142.24 mm) (diagonal) color TFT–LCD screens
  • Ideal for video monitoring applications
  • Two composite video inputs with built–in video switch per screen
  • Pass–through output for daisy–chaining to another video input device
  • Tilt adjustment for optimum viewing angle
  • Rugged rack–mountable design
  • PAL and NTSC compatible
  • Universal power supply (outlet adapter required for use outside the USA)
  • Individual brightness / contrast / tint control for each screen
